    The main Product Single-side Product (PCB)
    ITEM UNIT SPECIFICATION
    Material maker - Nanya, Huezheng, Changchun, Kingboard
    Material - FR-4, CEM-3
    Material thickness mm 0.6mm → 2.0mm
    Pattern size/width µm 150㎛
    Surface - OSP , ENIG , TIN
    Double-side Product (PCB)
    ITEM UNIT SPECIFICATION
    Material maker - Nanya, Huezheng, Changchun, Kingboard
    Material - FR-4, CEM-3
    Material thickness mm 0.2mm → 2.0mm
    Pattern size/width µm 70µm more than
    Surface - OSP , ENIG , TIN
    Hole size mm 0.2mm more than
    MLB Product (PCB)
    ITEM UNIT SPECIFICATION
    Material maker - Nanya, Huezheng, Changchun, Kingboard
    Material - FR-4, CEM-3
    Material thickness mm 0.4mm → 2.0mm
    Pattern size/width µm 70µm more than
    Surface - OSP , ENIG , TIN
    Hole size mm 0.2mm more than

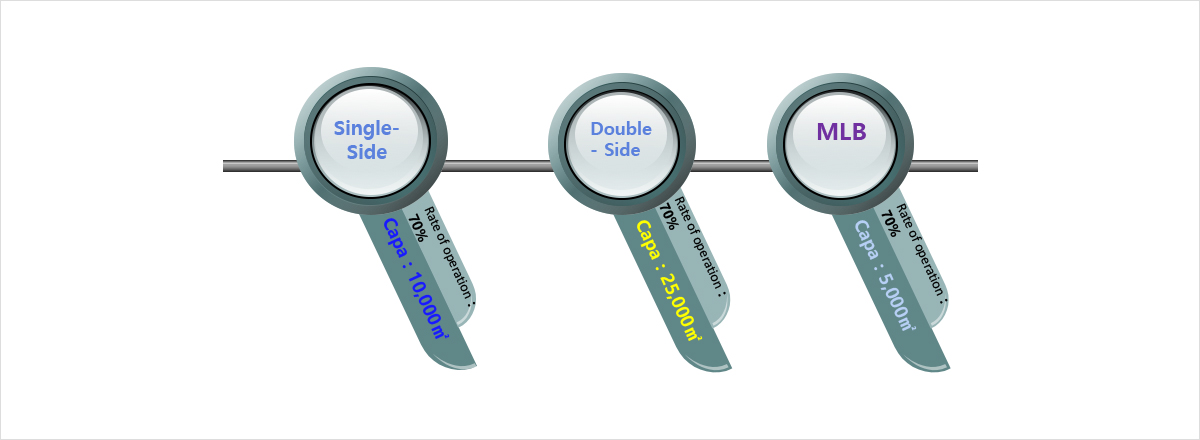

    Month product Capacity (M2)
    • Single Side : FR 4, CEM 3 PCB
    • Double Side : Bar(CEM-3) or Power PCB (FR-4)
    • MLB PCB : Double Side PCB

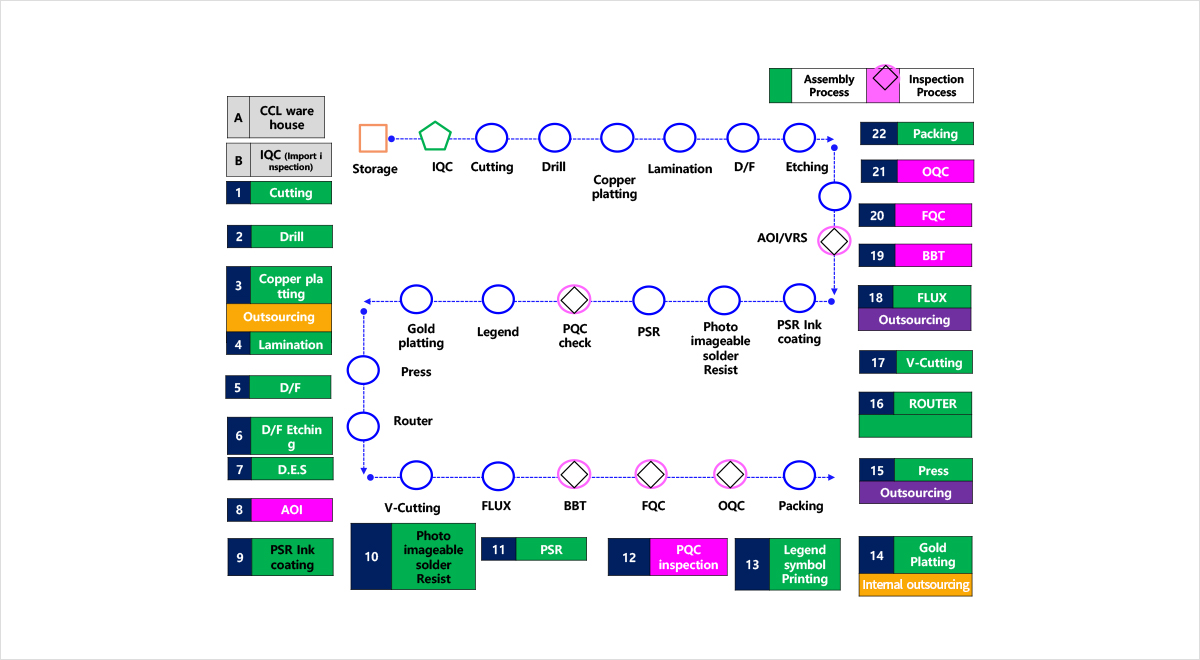

    Manufacturing Process
